2.2k Ohm 0.5watt 5% Carbon Film Resistor

Description

Technical Overview of the 2.2k Ohm 0.5watt 5% CFR Resistor

The 2.2k Ohm 0.5watt 5% CFR Resistor is an industry-essential passive component, specifically designed for stable current regulation and signal biasing. With a resistance value of 2,200 Ohms, it is one of the most frequently used components in analog signal processing and power management. The 0.5W (half-watt) power rating provides a significantly higher thermal ceiling than standard 1/4W resistors, allowing it to dissipate heat more efficiently in dense PCB layouts. At BuyCircuitParts, we supply industrial-grade 2.2k Ohm CFRs to ensure your audio amplifiers and industrial controllers stay reliable and “on track.”

Key Specifications and Color Code Identification

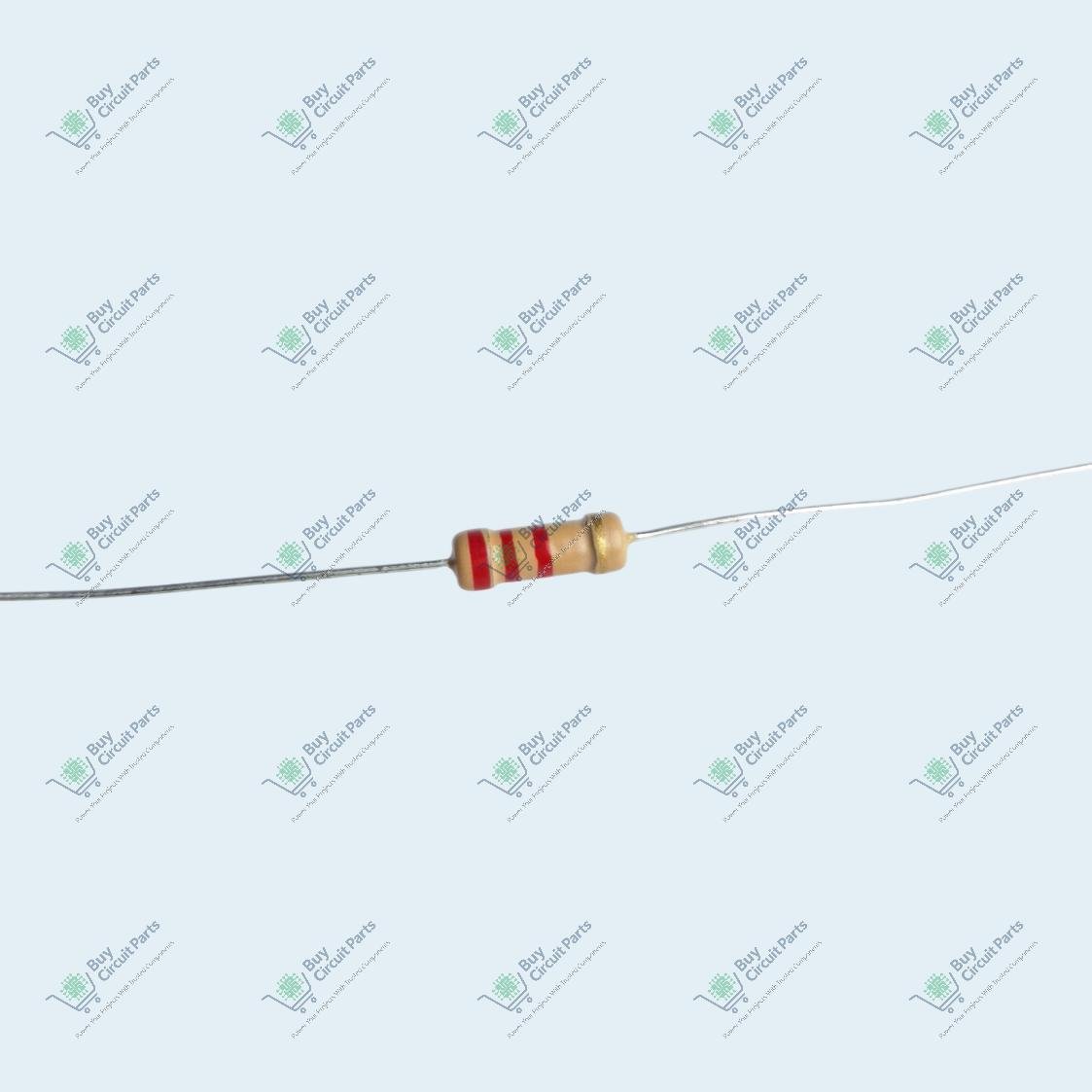

2.2k Ohm 0.5watt 5% CFR Resistor

To ensure this resistor meets your circuit’s specific electrical requirements, here are the technical parameters:

• Resistance Value: 2.2k $\Omega$ (2,200 Ohms).

• Power Rating: 0.5 Watt (1/2 Watt).

• Tolerance: ±5% (Gold band).

• Type: Carbon Film Resistor (CFR).

• Color Code: Red, Red, Red, Gold (Red-Red-Red-Gold).

• Maximum Working Voltage: 350V.

• Operating Temperature: -55°C to +155°C.

The Strategic Edge of 0.5W Carbon Film Technology

Carbon Film Resistors like the 2.2k Ohm 0.5watt 5% CFR Resistor are manufactured by coating a high-grade ceramic rod with a thin film of pure carbon. This technology provides excellent pulse stability and is highly resistant to environmental moisture. Choosing the 0.5W variant instead of the standard 0.25W is a professional choice for “safety overhead”—it prevents the resistor from running hot during continuous operation, which in turn prevents the resistance value from “drifting.” At BuyCircuitParts, our resistors are protected by a flame-retardant lacquer, ensuring that your hardware remains safe even under peak load conditions.

Common Applications for the 2.2k Ohm Resistor

The 2.2k Ohm 0.5watt 5% CFR Resistor is a highly versatile part used in numerous electronic configurations:

1. LED Current Limiting: Ideal for protecting LEDs in 12V or 24V systems where a lower resistance might cause overheating.

2. Transistor Biasing: Setting the operating point for BJT transistors in amplification and switching stages.

3. Pull-up/Pull-down Resistors: Maintaining stable logic levels for microcontroller inputs to avoid noise interference.

4. Audio Preamps: Used in feedback networks to control the gain of operational amplifiers.

5. Voltage Dividers: Reducing high-voltage signals to safe ranges for sensor data processing.

Pro-Tips for Circuit Integration

To maximize the reliability and performance of your 2.2k Ohm 0.5watt 5% CFR Resistor, follow these professional tips:

• Current Handling: For 2.2k Ohms at 0.5W, the maximum safe current is approximately 15mA. In most 5V-12V logic circuits, the current is much lower, providing a massive safety margin.

• Color Code Verification: Always verify the bands: Red (2), Red (2), Red (x100). Be careful not to confuse it with Brown (220 Ohm) or Orange (22k).

• Thermal Spacing: Even though 0.5W resistors run cooler, it is best practice to leave 1-2mm of space between the resistor body and the PCB to facilitate airflow.

• Soldering: Our resistors feature oxidation-resistant tinned leads. A quick solder joint (2-3 seconds) will ensure a secure bond while protecting the internal carbon film from excessive heat.

Why Buy from BuyCircuitParts?

As a specialized seller, we understand that quality components are the foundation of any successful project. At BuyCircuitParts, our 2.2k Ohm 0.5watt 5% CFR Resistor stock is sourced from manufacturers who prioritize uniform carbon film deposition and lead strength. We provide resistors with high-contrast color bands that are easy to read and leads that are ready for immediate soldering. Our fast shipping and technical expertise help you avoid the frustration of “out-of-spec” parts and keep your assembly “on track.”

Durability and Thermal Consistency

The 2.2k Ohm 0.5watt 5% CFR Resistor is built for the long haul. Its high-purity ceramic core provides mechanical strength against vibration, while the protective lacquer ensures that the 2.2k value remains stable despite changes in humidity. Whether you are repairing a vintage radio, building a custom MIDI controller, or designing an industrial sensor hub, this resistor provides the steady performance you can depend on. By choosing BuyCircuitParts, you are building with hardware designed for professional-grade longevity.

📐 Dimensions (Approx):
Length: 9.2 mm × Diameter: 3.2 mm
Lead Length: ~28 mm (can be trimmed as needed)

🧊 Note:
Product colour and markings may vary slightly based on manufacturer and batch. Functionality is guaranteed. (Refer to the product image for illustration only. For precise specifications, consult the datasheet.) For a detailed breakdown of resistor technology and standards, visit the Resistor Technology Wikipedia Page.

Explore more high-quality components like this at BuyCircuitParts, your one-stop shop for all electronic needs.
