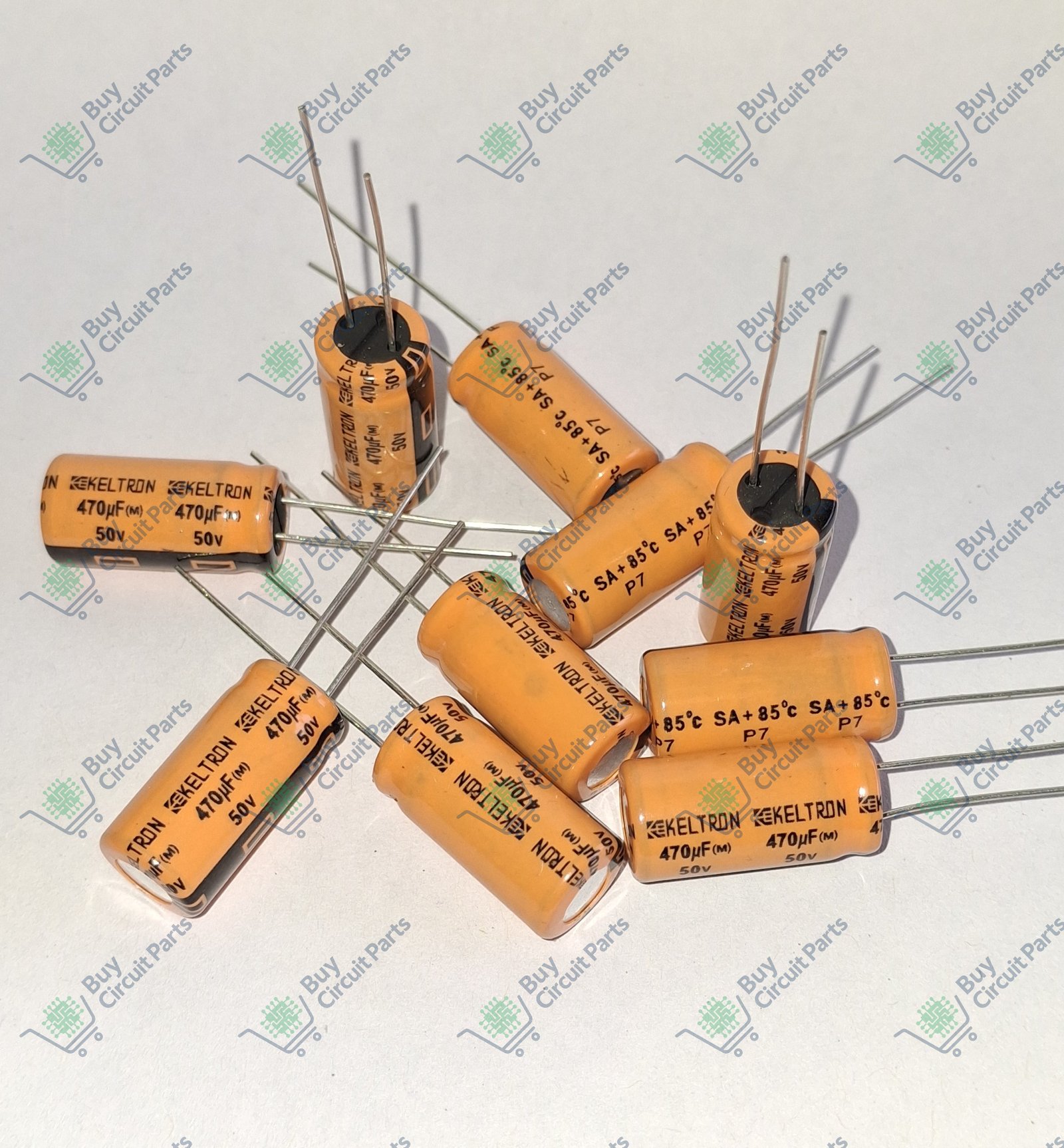

470uf 50v Electrolytic Capacitor – Keltron

Description

Technical Overview of the 470uf 50v Electrolytic Capacitor

The 470uf 50v Electrolytic Capacitor is a high-performance, polarized energy storage component designed for heavy-duty filtering and voltage regulation. With a significant capacitance of 470uf and a steady 50v rating, this capacitor is engineered to handle substantial ripple currents and maintain power integrity in demanding circuits. Its radial aluminum construction ensures efficient heat dissipation and volumetric efficiency, making it a critical part for any robust power management system. At BuyCircuitParts, we source these capacitors to meet the high reliability standards required for professional electronic builds.

Key Specifications and Functional Parameters

470uf 50v Electrolytic Capacitor
To ensure this component fits your specific circuit requirements, here are the technical specifications in plain text:

• Capacitance: 470uf.

• Voltage Rating: 50V (DC).

• Capacitor Type: Electrolytic (Polarized).

• Mounting Style: Through-Hole (Radial Lead).

• Tolerance: Plus or minus 20 percent.

• Operating Temperature Range: -40C to +105C.

• Life Span: Rated for long-term continuous operation at maximum temperature.

Why Choose the 470uf 50v Capacitor for Bulk Energy Storage?

The 470uf 50v Electrolytic Capacitor is an excellent choice for smoothing out rectified AC power and suppressing large voltage dips. Its 50v rating provides a safe operating overhead for 12V, 24V, and 36V power rails, ensuring that transient spikes do not damage the dielectric layer. The high capacitance value makes it ideal for buffering power in circuits with high peak current demands. At BuyCircuitParts, our inventory is selected for low leakage and high ripple current tolerance to ensure your power delivery remains stable under load.

Common Applications for the 470uf Electrolytic Capacitor

The 470uf 50v Electrolytic Capacitor is widely utilized in:

1. Main Filter Stages: Smoothing the output of bridge rectifiers in power adapters.

2. Audio Amplifiers: Serving as a reservoir for power stages to ensure deep bass response and clear transients.

3. Motor Drivers: Buffering the DC bus in stepper and servo motor controllers to absorb inductive kickback.

4. DC-DC Converters: Reducing output ripple in buck and boost regulator circuits.

5. Industrial Equipment: Stabilizing power for relays, solenoids, and high-power control boards.

Pro-Tips for Circuit Integration

To maximize the accuracy and operational life of your 470uf 50v Electrolytic Capacitor, follow these professional tips:

• Polarity Check: Always verify the negative stripe on the casing. Connecting this capacitor in reverse can lead to rapid overheating and internal pressure failure.

• Voltage Headroom: For the best long-term reliability, try to operate this component at 80 percent or less of its 50V maximum rating.

• Mechanical Mounting: Ensure the leads are properly trimmed and the capacitor is seated firmly against the PCB to prevent stress on the solder joints from vibration.

• Soldering Technique: Use a clean tip and avoid heating the terminals for more than 3 seconds to preserve the integrity of the internal chemical seal.

Durability and Reliability

The 470uf 50v Electrolytic Capacitor is built to withstand rigorous conditions, featuring a high temperature tolerance of 105C. The aluminum housing is designed to be robust, protecting the internal electrolyte from external environmental factors. This capacitor maintains its electrical characteristics over thousands of hours, making it a reliable choice for devices that run 24/7. By choosing this component from BuyCircuitParts, you are getting a part designed for industrial-grade durability and minimal parameter drift.

Why Buy from BuyCircuitParts?

Electronic performance depends on the quality of your passive components. At BuyCircuitParts, our 470uf 50v Electrolytic Capacitor inventory is vetted for consistent ESR values and high thermal stability. We understand that precision and reliability are non-negotiable for your projects. Our fast shipping, secure packaging, and focus on technical accuracy ensure that your assembly process moves forward without any interruptions.

📐 Approx Dimensions (Radial):
Diameter: ~10 mm
Height: ~20 mm
Lead Spacing: ~5 mm

🧊 Note: Product colour and markings may vary slightly based on manufacturer and batch. Functionality is guaranteed. (Refer to the product image for illustration only. For precise specifications, consult the datasheet.) For a deeper understanding of how electrolytic capacitors store energy, visit the Capacitor Wikipedia Page.
