9.1V 0.5W Zener Diode – Reliable Voltage Regulation

Description

Technical Overview of the 9.1V 0.5W Zener Diode

The 9.1V 0.5W Zener Diode is a precision-engineered silicon semiconductor designed for voltage regulation and transient suppression. Housed in the industry-standard DO-35 glass package, this 500mW (0.5 Watt) diode is a favorite for designers who need a stable 9V-range reference without the bulk of a TO-220 regulator. Its primary function is to maintain a constant 9.1V output across its terminals by operating in reverse breakdown mode. At BuyCircuitParts, we supply industrial-grade 9.1V 0.5W Zener Diode units that offer the thermal stability and accuracy required to keep your analog and power designs “on track.”

Key Specifications and Data Sheet Highlights

For accurate circuit modeling and PCB population, here are the technical parameters of the 9.1V 0.5W Zener Diode:

• Zener Voltage ($V_z$): 9.1V (Nominal).

• Power Dissipation ($P_d$): 0.5 Watt (500mW).

• Tolerance: ±5% (Standard for C-series precision).

• Package Type: DO-35 (Axial lead, hermetically sealed glass).

• Zener Impedance ($Z_{zt}$): ~10-15 Ohms (at 5mA).

• Reverse Leakage Current: < 0.5µA at 7.0V.

• Operating Temperature: -65°C to +175°C.

The Strategic Utility of 9.1V in Analog Design

The 9.1V 0.5W Zener Diode is often selected for circuits powered by 12V or 15V supplies where a stable sub-rail is needed for sensors or bias voltages. Unlike a standard 9.0V regulator, the 9.1V Zener accounts for the small voltage drops typically found in series components, ensuring your active components receive a “true” 9V-level signal. Because the 0.5W version has a smaller silicon junction than 1W models, it offers lower parasitic capacitance, making it excellent for audio filtration and high-speed signal clamping. At BuyCircuitParts, our Zeners are tested for “sharp knee” breakdown, ensuring they regulate with high precision the moment the threshold is hit.

Common Applications for the 9.1V 0.5W Zener Diode

The 9.1V 0.5W Zener Diode is highly versatile and used in numerous applications:

1. Audio Preamplifiers: Removing ripple and providing a clean 9.1V rail for low-noise op-amps.

2. Sensor Biasing: Providing a stable reference voltage for LDRs, thermistors, and pressure sensors.

3. Overvoltage Protection: Acting as a safety clamp for 9V battery-operated devices to prevent damage from faulty adapters.

4. Comparator Reference: Serving as a fixed 9.1V input for window comparators in battery monitoring systems.

5. Guitar Pedals: Frequently used in the power protection and clipping stages of boutique effects pedals.

Pro-Tips for Circuit Integration

To ensure your 9.1V 0.5W Zener Diode provides long-term reliability, follow these professional tips:

• Current Limit Calculation: The maximum safe current for this diode at 9.1V is approximately 54mA ($I = P/V$). For optimal performance, aim for a “Test Current” ($I_{zt}$) of 5mA to 20mA.

• Reverse Bias Connection: Remember that for regulation, the diode must be Reverse Biased. The Cathode (the end with the black stripe) should be connected to the positive side of the supply.

• Mechanical Handling: The DO-35 glass body is brittle. When bending leads for through-hole assembly, use needle-nose pliers to hold the lead near the body, preventing the hermetic seal from cracking.

• Heat Dissipation: Even at 0.5W, the diode can generate heat. Leave 2mm to 4mm of lead length between the diode and the PCB to allow for airflow and to keep the heat away from sensitive nearby components.

Why Buy from BuyCircuitParts?

As a specialized seller, we know that low-quality glass Zeners can suffer from “voltage drift” under varying temperatures. At BuyCircuitParts, our 9.1V 0.5W Zener Diode stock is sourced from trusted manufacturers. Each diode features clearly etched markings and high-purity tinned leads that ensure a low-resistance solder connection. We help you avoid the frustration of inconsistent regulation and keep your projects “on track” with our high-quality components and technical expertise.

Durability and Thermal Stability

The 9.1V 0.5W Zener Diode is built for consistency. Its hermetically sealed package protects against moisture and chemical oxidation, which is vital for long-term reliability in both hobbyist projects and industrial equipment. Whether you are repairing a vintage piece of gear or designing a new 9V sensor module, this diode provides the steady reference you can count on. By choosing your parts from BuyCircuitParts, you are building with reliable hardware tested for performance.

Approximate Dimensions:

Body Length: ~3.5 mm
Diameter: ~2 mm
Lead Pitch: ~25 mm

🧊 Note:

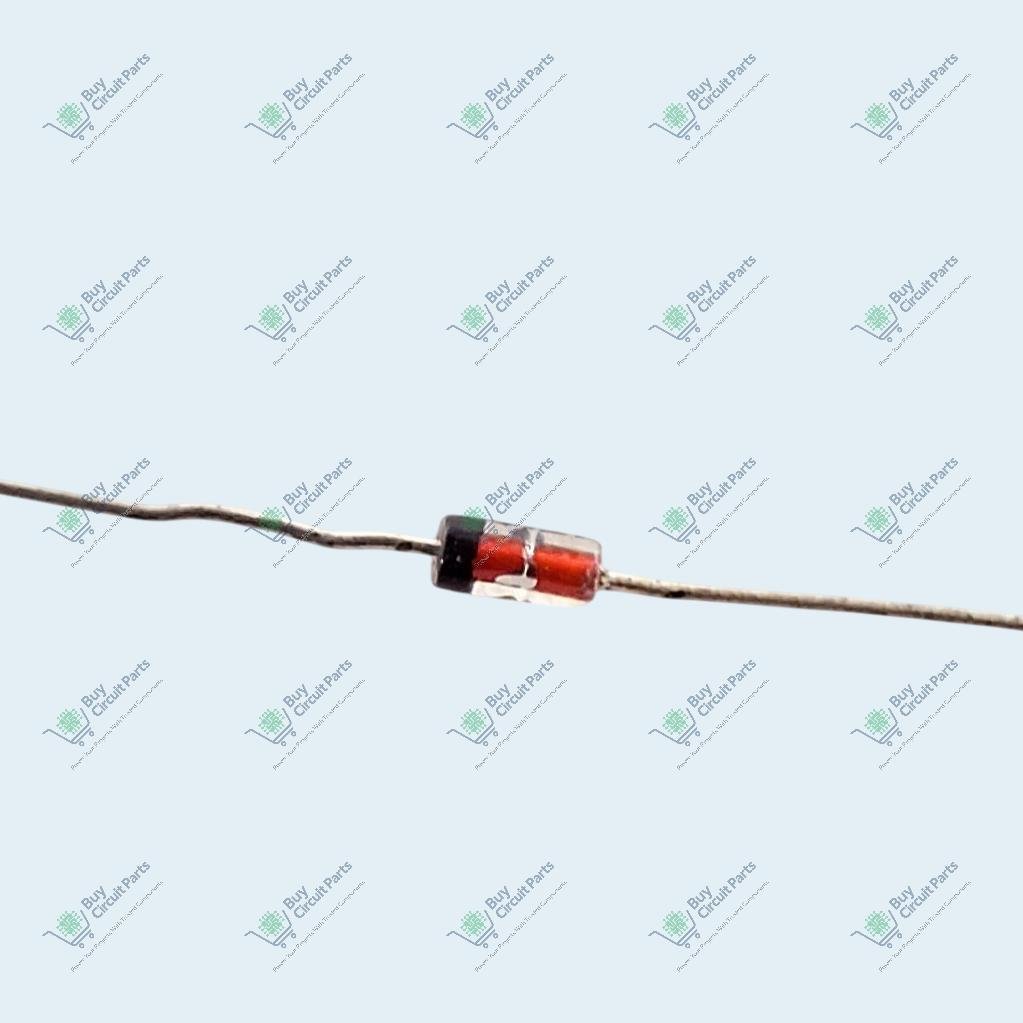

Product colour and markings may vary slightly based on manufacturer and batch. Functionality is guaranteed. (Refer to the product image for illustration only. For precise specifications, consult the datasheet.) For more details, check the Zener Diode Datasheet.
