A10K 15mm D-Shaft Log Potentiometer – Elcon

Description

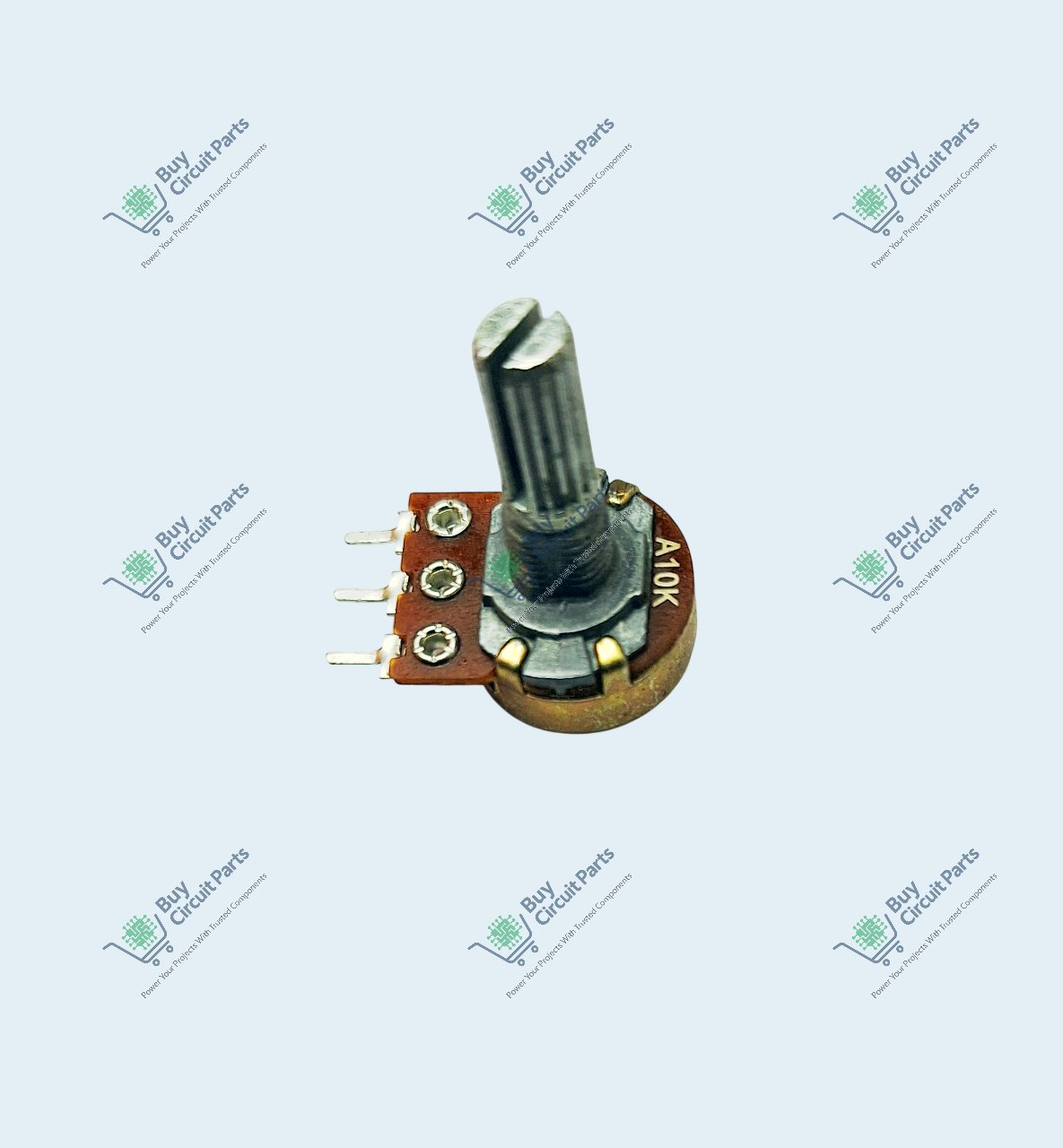

Technical Overview of the A10K 15mm D-Shaft Potentiometer

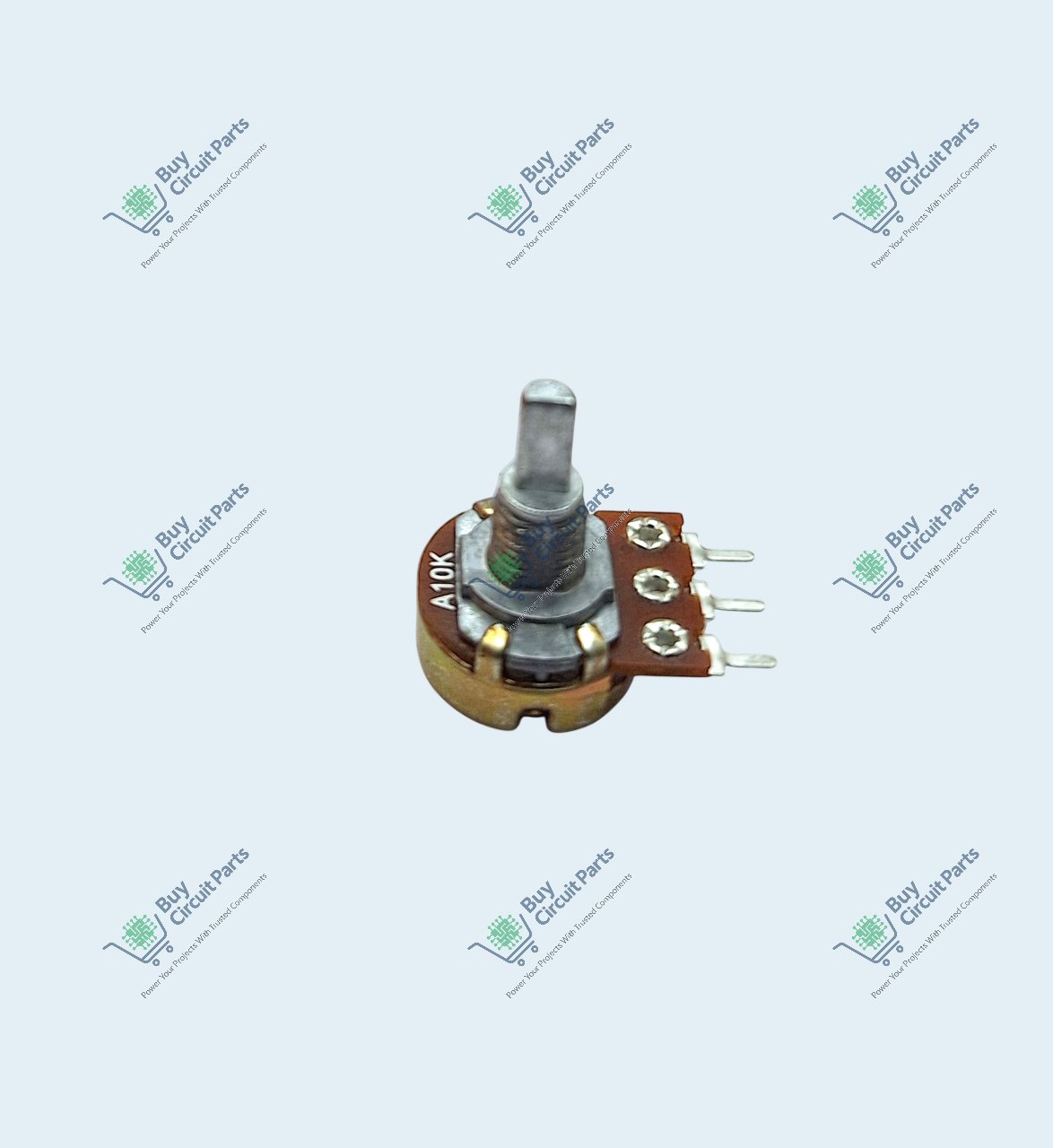

The A10K 15mm D-Shaft Potentiometer is a specialized variable resistor designed primarily for audio control and sound processing. Featuring a 10k Ohm resistance and a Logarithmic (A) Taper, this model mimics the human ear’s natural perception of sound, making it the industry standard for volume control. The 15mm D-shaft (flat shaft) ensures that set-screw knobs are locked in place securely, preventing any mechanical slippage. At BuyCircuitParts, we source these audio-grade components to keep your sound systems perfectly “on track.”

Key Specifications and Functional Parameters

A10K 15mm D-Shaft Potentiometer
To ensure this component fits your audio circuit requirements, here are the technical specifications:

• Resistance Value: 10k Ohm (A10K).

• Taper Type: Logarithmic / Audio (Type A).

• Shaft Length: 15mm.

• Shaft Type: D-Shaft / Flat Shaft (6mm diameter).

• Rotation Angle: 300° ± 5°.

• Power Rating: 0.05W to 0.1W (Audio Grade).

• Package Type: Panel Mount with Solder Lugs.

Why Choose the A10K Log Taper for Audio?

The A10K 15mm D-Shaft Potentiometer is essential for volume and gain stages because humans do not hear sound in a linear fashion. A logarithmic taper provides a smooth increase in volume throughout the entire rotation, whereas a linear taper would make the sound jump too quickly at the beginning. The D-shaft design is a premium addition, often found in high-end amplifiers where heavy metal knobs require a flat surface for a set-screw to bite into. At BuyCircuitParts, our A10K models are chosen for their ultra-low noise floor and smooth mechanical travel.

Common Applications for the A10K Log Potentiometer

The A10K 15mm D-Shaft Potentiometer is a core component in:

1. Audio Amplifiers: Used as a master volume control or gain stage adjuster.

2. Guitar Pedals: Ideal for “Volume” or “Drive” knobs where smooth swells are needed.

3. Mixing Consoles: Adjusting individual channel levels without sudden signal spikes.

4. Hi-Fi Systems: Providing precise and comfortable sound level management.

5. Signal Processors: Tuning the intensity of effects like reverb or delay.

Pro-Tips for Circuit Integration

To maximize the accuracy of your A10K 15mm D-Shaft Potentiometer, follow these professional tips:

• Audio Taper Orientation: Ensure you connect Pin 1 to Ground and Pin 3 to Input so the volume increases in a clockwise direction.

• Knob Fitting: Always align the set-screw of your knob with the flat part of the D-shaft to prevent the knob from rotating independently.

• Cleaning: If the potentiometer becomes “scratchy” over time, a quick spray of specialized electronic contact cleaner can put it back “on track.”

• Soldering: Use heat sinks or work quickly when soldering the lugs to avoid melting the internal wiper track.

Durability and Reliability

The A10K 15mm D-Shaft Potentiometer is built for a long life in high-use environments. The internal resistive element is designed to handle thousands of cycles without the “crackle” common in lower-quality parts. Its D-shaft construction is significantly more reliable than split-shaft models for professional gear, as it eliminates the risk of the shaft splitting or the knob falling off. By choosing this model from BuyCircuitParts, you ensure your audio equipment remains reliable and noise-free for years of professional performance.

Why Buy from BuyCircuitParts?

In audio, every detail matters. At BuyCircuitParts, our A10K 15mm D-Shaft Potentiometer inventory is vetted for taper consistency and mechanical smoothness. We understand that a wobbly shaft or a jumpy volume curve can ruin a project. We provide high-standard hardware, fast shipping, and accurate technical descriptions to ensure your build stays “on track” from start to finish.

📐 Dimensions (Approx):
Length: 7 mm × Width: 7 mm × Height: 5 mm (pot body)
Shaft Length: 15 mm
Shaft Diameter: 6 mm (D-shaped)

🧊 Note:
Product colour and markings may vary slightly based on manufacturer and batch. Functionality is guaranteed. (Refer to the product image for illustration only. For precise specifications, consult the datasheet.) For more in-depth information on the working principle, construction materials, and mathematical laws of variable resistors, you can visit the Potentiometer Wikipedia Page.

Explore more high-quality components like this at BuyCircuitParts, your one-stop shop for all electronic needs.
