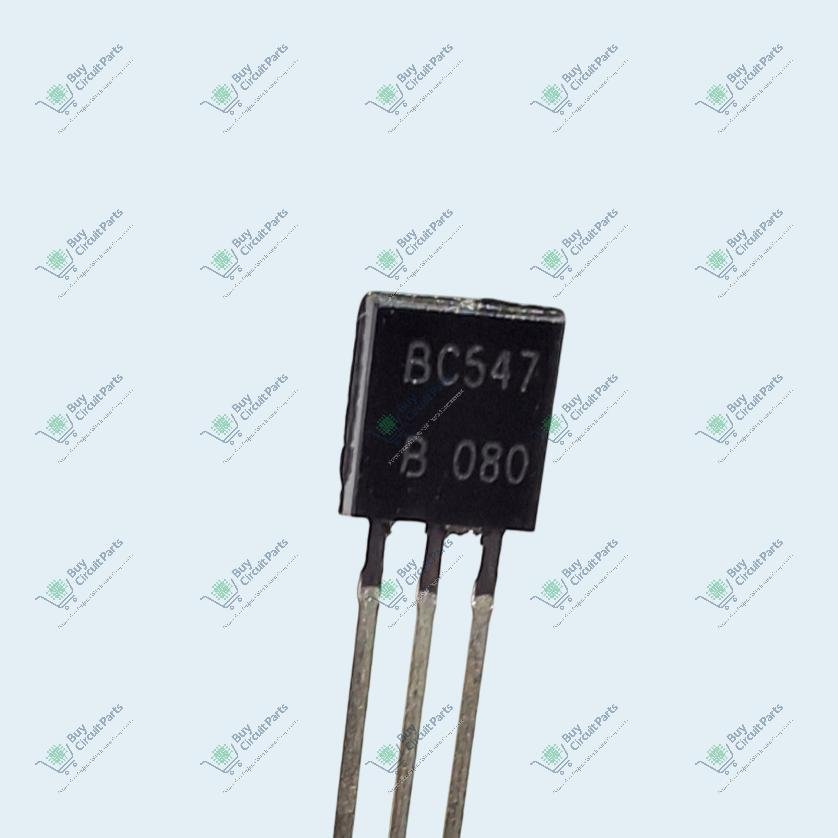

BC547 NPN Transistor 3 Pin

Description

Technical Overview of the BC547 NPN Transistor 3 Pin

The BC547 NPN Transistor 3 Pin is the quintessential small-signal silicon transistor, found in almost every hobbyist kit and consumer electronic device. It is a Bipolar Junction Transistor (BJT) optimized for low-current switching and high-gain amplification. Unlike higher current transistors, the BC547 is engineered for precision and low noise, making it the perfect choice for processing sensor data or boosting weak audio signals. At BuyCircuitParts, we supply industrial-grade BC547 NPN Transistor 3 Pin units in the standard TO-92 package, ensuring your logic circuits and pre-amps stay “on track.“

Key Specifications and Data Sheet Highlights

To integrate this transistor correctly into your PCB or breadboard design, here are the technical parameters of the BC547 NPN Transistor 3 Pin:

• Transistor Type: NPN (Silicon).

• Package: TO-92 (Standard through-hole).

• Collector-Emitter Voltage ($V_{ceo}$): 45V.

• Collector-Base Voltage ($V_{cbo}$): 50V.

• Continuous Collector Current ($I_c$): 100mA.

• DC Current Gain ($h_{FE}$): 110 to 800 (Categorized into A, B, and C grades).

• Transition Frequency ($f_T$): 300 MHz.

• Noise Figure: 2 dB to 10 dB (Low noise performance).

Why BC547 is the Gold Standard for Small Signals

The BC547 NPN Transistor 3 Pin is favored for its high gain and predictable linear performance. While it cannot drive heavy motors (see our BC337 for higher current), its 100mA capacity is more than enough for driving LEDs, triggering ICs, or acting as a switch in digital logic gates. One of its strongest features is its low noise floor, which is critical for the first stage of an audio amplifier or a signal-conditioning circuit for sensitive sensors. At BuyCircuitParts, we ensure our stock maintains consistent gain characteristics across every batch.

Common Applications for the BC547 NPN Transistor

The BC547 NPN Transistor 3 Pin is a versatile tool for a variety of low-power applications:

1. Sensor Pre-amplifiers: Boosting the micro-voltage output from microphones or LDRs (Light Dependent Resistors).

2. LED Drivers: Controlling indicator lights and small displays from microcontroller GPIO pins.

3. Touch Switches: Its high gain makes it ideal for touch-sensitive or proximity-based trigger circuits.

4. Signal Inverters: Acting as a NOT gate in discrete digital logic circuits.

5. Current Limiters: Used in feedback loops of voltage regulator circuits to protect sensitive components.

Pro-Tips for Circuit Integration

To get the most reliable performance from your BC547 NPN Transistor 3 Pin, follow these best practices:

• Pin Identification: Like most BC-series transistors, the BC547 uses the European standard pinout. When looking at the flat side with the leads pointing down, the pins are Collector (1), Base (2), and Emitter (3).

• Operating Margin: While it is rated for 45V, for maximum longevity, it is best to use it in circuits under 30V. This prevents thermal stress and ensures stable gain.

• Saturation: To use the BC547 as a switch, ensure you provide enough base current (usually 1/10th of the collector current) to fully “turn it on” (saturation).

• Complementary Pair: If your circuit requires a PNP equivalent for a push-pull amplifier or a bridge, the BC557 is the perfect match for the BC547.

Why Buy from BuyCircuitParts?

As a specialized seller, we understand that “clone” transistors often fail to meet the high transition frequency or low-noise specifications of the original design. At BuyCircuitParts, our BC547 NPN Transistor 3 Pin units are sourced from reputable manufacturers. We check for clean lead finishing and clear part markings to ensure your assembly process is as efficient as possible. Whether you are a student learning the basics or an engineer prototyping a new sensor module, we provide the quality components needed to keep your project “on track.“

Durability and Thermal Stability

The BC547 NPN Transistor 3 Pin is housed in a robust epoxy TO-92 package that is resistant to environmental moisture and moderate mechanical impact. Its thermal stability is excellent for indoor and outdoor electronics, provided the 100mA current limit is respected. By choosing your semiconductors from BuyCircuitParts, you are building with parts that are tested for reliability and long-term performance.

📐 Approx Dimensions (TO-92 Package):
Height (incl. leads): ~12 mm
Body Height: ~4.5 mm
Width: ~4.0 mm
Pin Pitch: 1.27 mm

🧊 Note: Product colour and markings may vary slightly based on manufacturer and batch. Functionality is guaranteed. (Refer to the product image for illustration only. For precise specifications, consult the datasheet.) For more details, check the BCP547 Datasheet.
