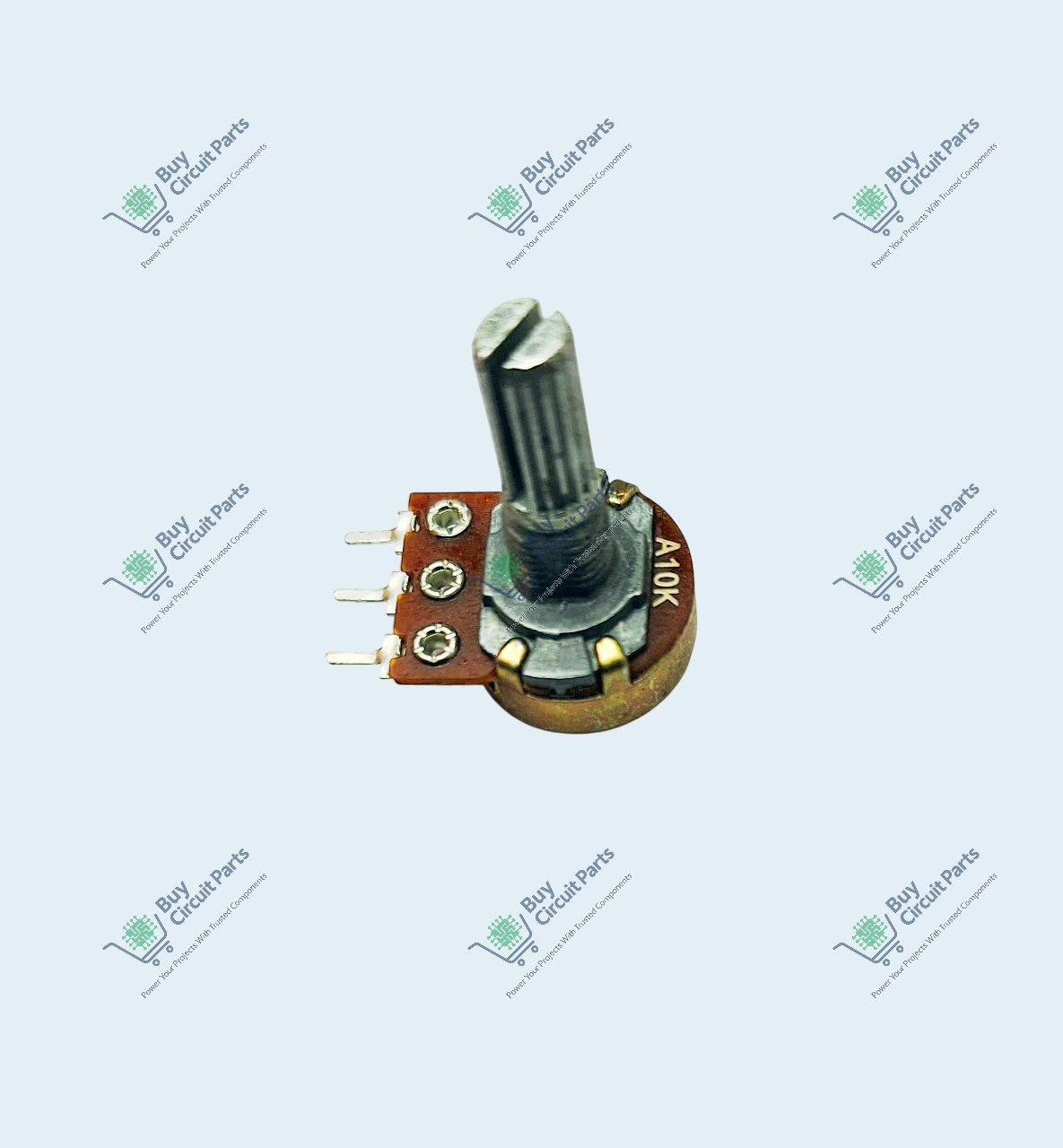

Elcon A10K Rotary Potentiometer High Quality | 20mm Metal Shaft | Single-Turn | Logarithmic Audio Taper | PCB Mount

Description

Elcon A10K Rotary Potentiometer High Quality | 20mm Metal Shaft | Single-Turn | Logarithmic Audio Taper | PCB Mount

📃 Full Description:
The Elcon A10K is a precision rotary potentiometer rated at 10,000 ohms with a logarithmic taper, making it ideal for audio volume control and applications where human hearing perception is involved. Featuring a robust 20mm metal shaft knurled and smooth single-turn operation, this potentiometer ensures reliable and stable resistance adjustment.
It is designed for through-hole PCB mounting or panel mounting, commonly used in amplifiers, mixers, tone controls, and other audio electronics. Manufactured by Elcon, a trusted name in Indian electronic components, the A10K potentiometer offers long-lasting performance and smooth resistance change characteristics tailored for real-world audio needs.

➡️ This is a Logarithmic (Audio) Taper potentiometer – resistance increases non-linearly with rotation to match the way human ears perceive loudness.

✅ Key Features:
Resistance: 10KΩ (marked A10K)
Taper Type: Logarithmic (Audio Taper)
Rotation: Single-turn (approx. 300°)
Shaft: 20mm metal shaft knurled, 6 mm diameter
Body: 16–20 mm diameter standard
Mounting Type: Through-hole PCB or panel-mount
Pin Configuration: 3-pin standard
Durable, smooth operation
Long operational life
Made in India (Elcon brand)

⚙️ Applications:
Audio volume controls
Mixer boards and preamps
Audio tone controls
User-adjustable gain controls
DIY audio amplifier kits
Human perception-based signal adjustments
Sound equalizers and effect boxes

📐 Dimensions (Approx):
Length: 7 mm × Width: 7 mm × Height: 5 mm (excluding shaft)
Shaft Length: 20 mm, Shaft Diameter: 6 mm

📝 Note:
Product image is for illustration; always refer to the official datasheet for accurate specifications.
