Elcon B100K Linear Potentiometer | 15mm Knurled Shaft | High Quality Rotary Control | Single-Turn | PCB Mount

Description

Elcon B100K Linear Potentiometer | 15mm Knurled Shaft | High Quality Rotary Control | Single-Turn | PCB Mount

📃 Full Description:

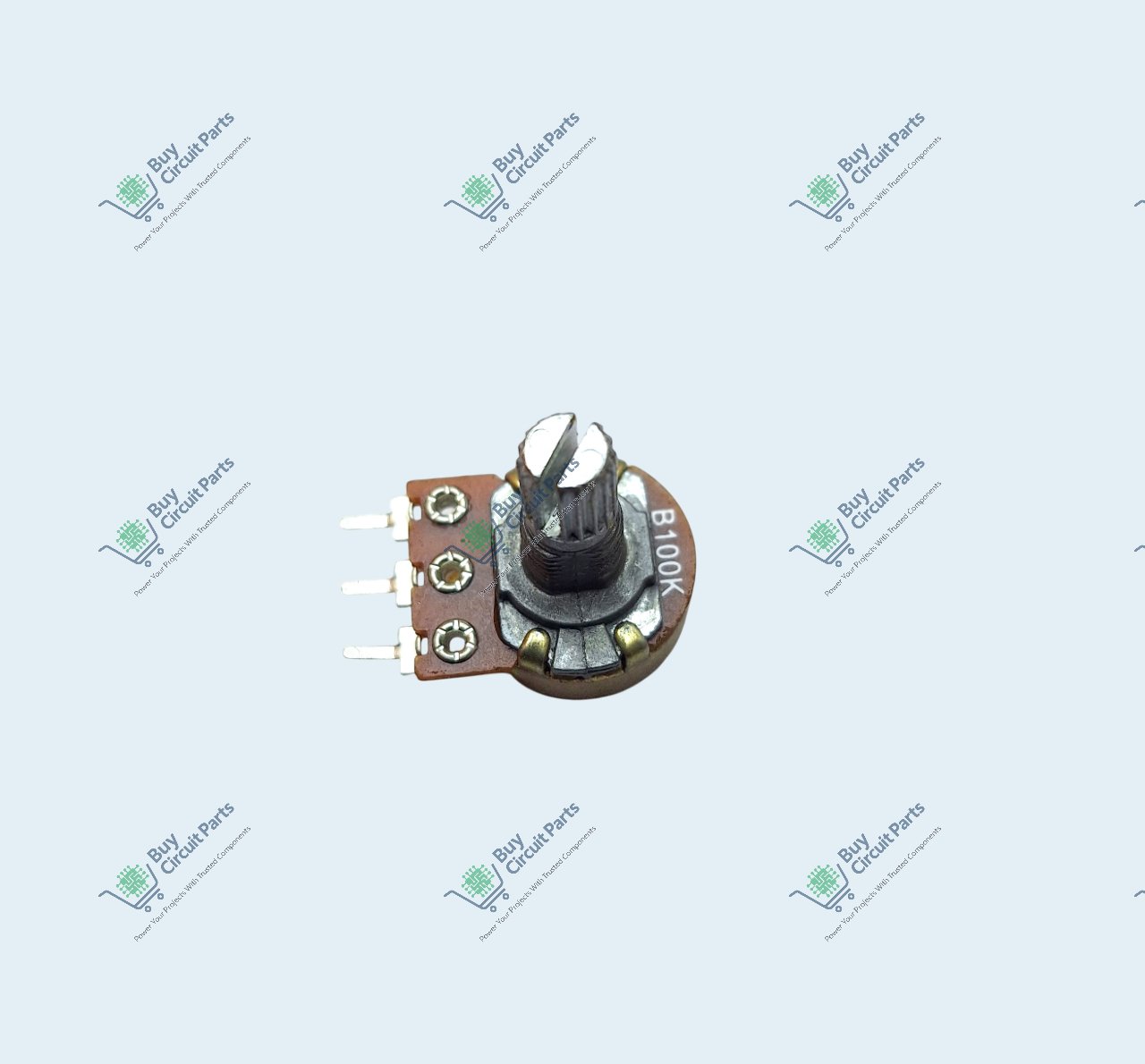

The Elcon B100K is a 100KΩ linear taper rotary potentiometer equipped with a 15mm knurled metal shaft that allows easy grip and compatibility with standard knobs. Its single-turn operation provides linear resistance change across the full rotation range, making it ideal for applications requiring precise voltage or signal control.
It features 3-pin through-hole PCB mounting, making it a staple choice for electronic DIY projects, embedded systems, and analog tuning applications. Built by Elcon, a trusted Indian manufacturer, this potentiometer offers long mechanical life and stable resistance behavior.

➡️ This is a Linear Taper potentiometer (B-type) – resistance changes uniformly with shaft rotation. Ideal for voltage regulation, analog input, or general-purpose tuning.

✅ Key Features:
Resistance: 100KΩ (B100K marking)
Taper Type: Linear
Rotation: Single-turn (~300°)
Shaft Type: 15mm knurled metal shaft, 6 mm diameter
Standard 3-pin layout
PCB mount (through-hole)
Sturdy build and reliable performance
Compatible with universal knobs
Smooth and consistent adjustment
Manufactured by Elcon (India)

⚙️ Applications:
Voltage dividers and signal tuning
Analog input for microcontrollers (Arduino, Raspberry Pi)
General-purpose resistance control
DIY audio and electronics projects
Calibration of circuits
Robotics and automation
Analog sensor tuning
Power supply voltage trimming
📐 Dimensions (Approx):
Length: 7 mm × Width: 7 mm × Height: 5 mm (excluding shaft)
Shaft Length: 15 mm
Shaft Diameter: 6 mm (knurled type)

📝 Note:
Product image is for illustration; always refer to the official datasheet for accurate specifications.
