Elcon B100K Linear Potentiometer | 15mm D Shaft | High Quality Single-Turn Rotary | PCB Mount

Description

Elcon B100K Linear Potentiometer | 15mm D Shaft | High Quality Single-Turn Rotary | PCB Mount

📃 Full Description:
The Elcon B100K is a 100KΩ single-turn linear potentiometer designed for accurate and proportional resistance adjustment. It features a durable 15mm D-type metal shaft, providing excellent grip and compatibility with set-screw knobs used in control panels and embedded systems.
This potentiometer is ideal for applications needing smooth and linear resistance response, such as analog input control, sensor calibration, voltage regulation, and DIY electronic projects. With its through-hole 3-pin PCB mount, it’s suitable for prototyping, repair work, and production builds alike.

➡️ This is a Linear Taper potentiometer (B-type) – resistance changes uniformly across the shaft rotation.

✅ Key Features:
Resistance: 100KΩ (Marked B100K)
Taper Type: Linear
Rotation Type: Single-Turn (~300°)
Shaft: 15mm D-type metal shaft, 6 mm diameter
Mounting: 3-pin through-hole for PCB
Body: High-quality build with long lifespan
Manufacturer: Elcon (India)
Smooth, proportional control
Compatible with D-shaft knobs

⚙️ Applications:
Analog voltage divider
DIY audio and electronics projects
Sensor calibration and signal adjustment
Volume or level control
Power supply tuning
Arduino, Raspberry Pi, and other microcontroller inputs
Robotics and automation systems
Prototyping and repairs

📐 Dimensions (Approx):
Length: 7 mm × Width: 7 mm × Height: 5 mm (excluding shaft)
Shaft Length: 15 mm
Shaft Diameter: 6 mm (D-type)

📝 Note:

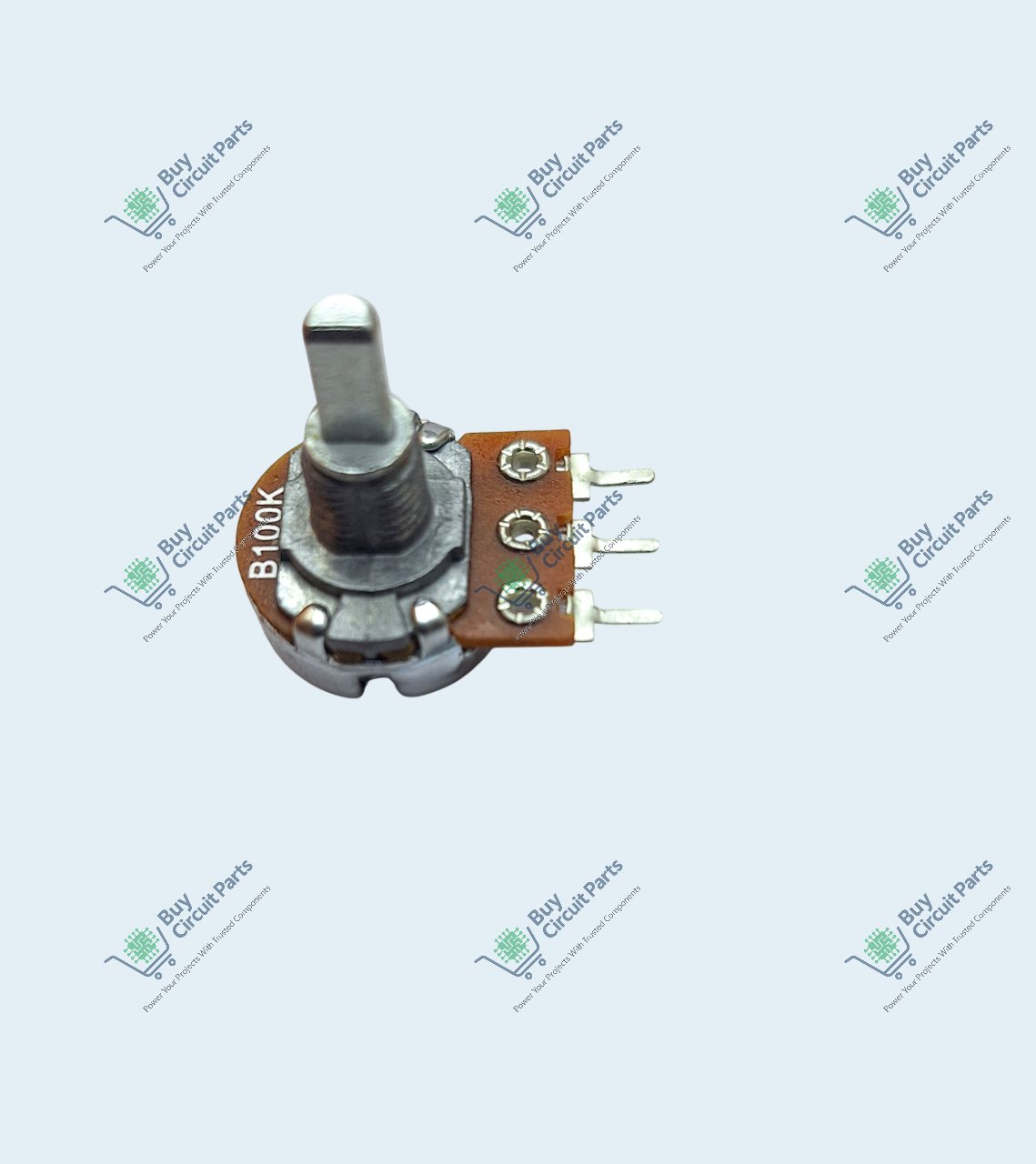

Product image is for illustration; always refer to the official datasheet for accurate specifications.
