📦 Description:

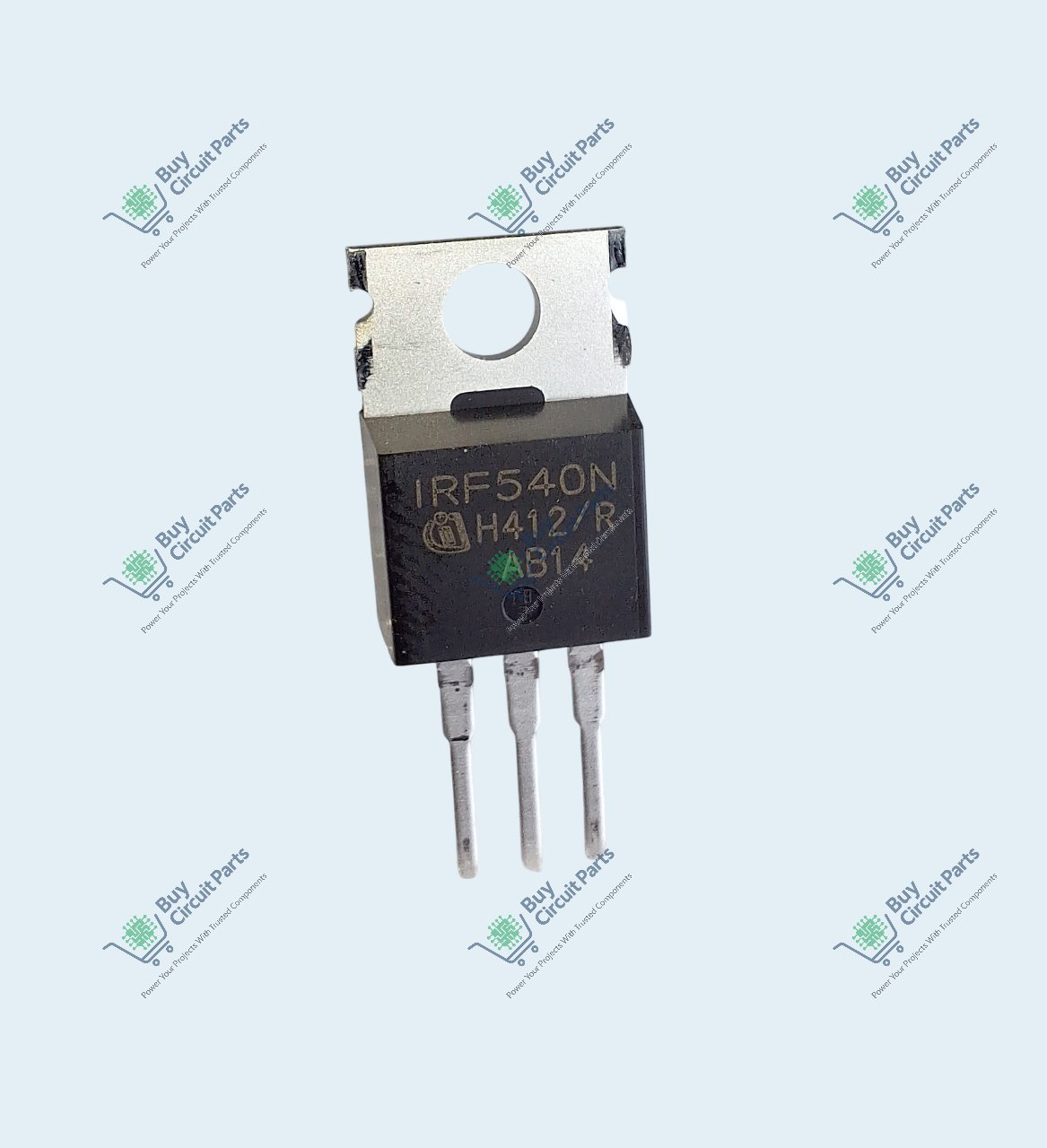

The IRF540N is a popular N-Channel Power MOSFET by Infineon Technologies, capable of switching up to 100V and 33A with very low on-resistance (R<sub>DS(on)</sub> ~44mΩ). Designed for efficiency in DC-DC converters, motor drivers, SMPS, and general-purpose high-speed switching.
This high-speed MOSFET supports logic-level drive and comes in the TO-220 package with a metal tab for heat sinking. Perfect for high-current switching and power control in DIY and professional projects.
✅ Key Features:
MOSFET Type: N-Channel
Drain-Source Voltage (V<sub>DS</sub>): 100V
Continuous Drain Current (I<sub>D</sub>): 33A
Gate Threshold Voltage (V<sub>GS(th)</sub>): 2.0–4.0V
Low On-Resistance (R<sub>DS(on)</sub>): ~44mΩ
Fast switching speed
Package: TO-220
Brand: Infineon Technologies
RoHS Compliant
⚙️ Applications:
DC motor controllers
DC-DC converters
Power supplies (SMPS)
High-speed switching circuits
Inverters and solar projects
Relay replacement
LED dimmers and PWM control
📐 Approx Dimensions (TO-220 Package):
Total Height: ~16.0 mm (with leads)
Body Height: ~10.0 mm
Width: ~10.2 mm
Thickness: ~4.5 mm
Lead Pitch: 2.54 mm
Mounting Hole: ~3.3 mm diameter
🧊 Note:
For optimal performance and thermal protection, use with a recommended TO-220 heatsink (e.g., 25×15×15mm aluminum fin type) and apply thermal paste or pad.
Product color or marking may vary slightly by batch. Refer to the datasheet for exact specs. Image is for reference only.
