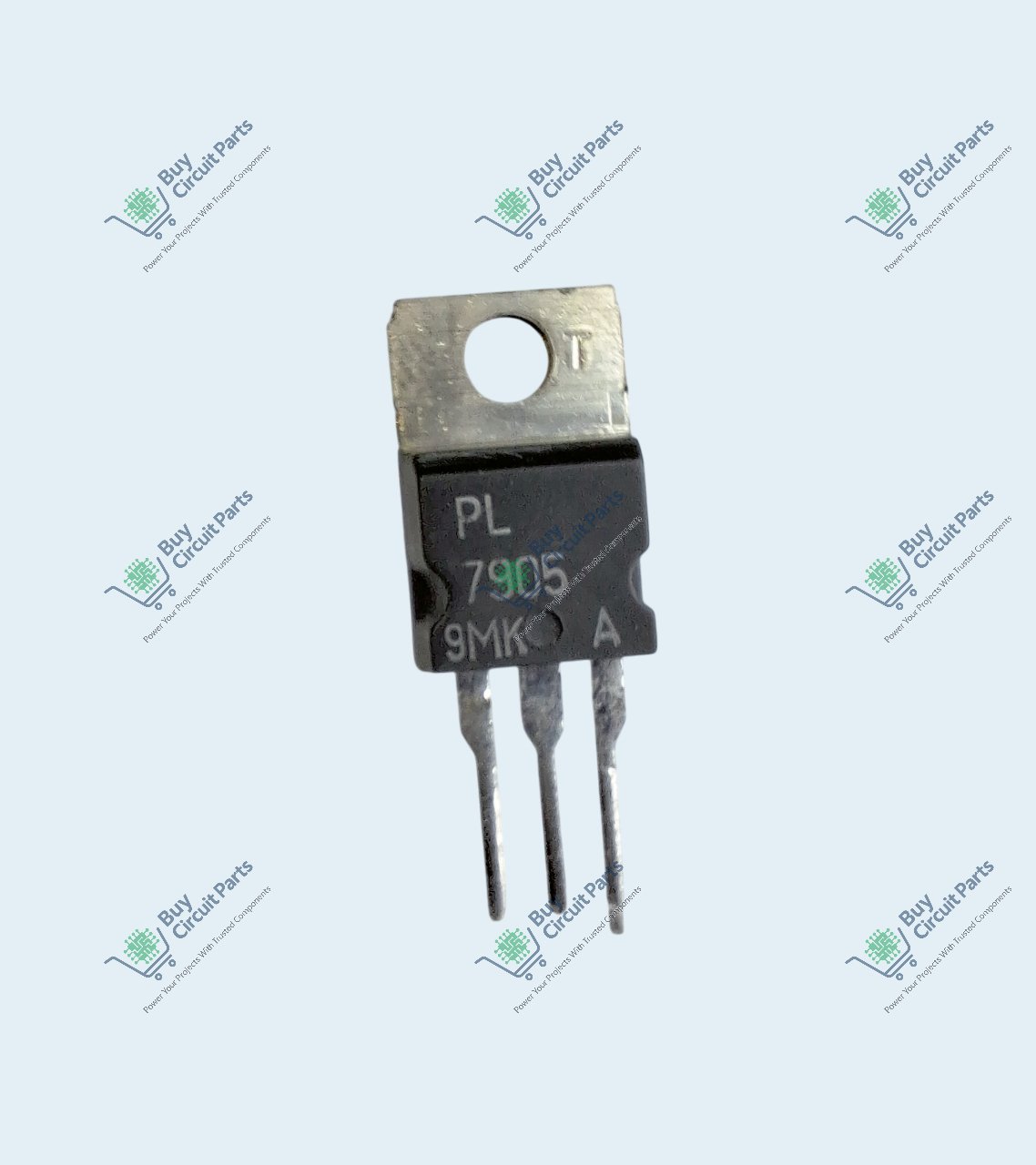

PL 7905 High Quality Negative Voltage Regulator IC – TO-220, -5V, 1.5A

Description

📦 Description:
The PL 7905 is a negative linear voltage regulator IC in the TO-220 package, capable of delivering a stable -5V output with a maximum output current of 1.5A. It includes built-in protection against overcurrent and thermal overload, ensuring long-lasting and safe operation in various applications.
Perfect for dual polarity power supplies, audio systems, op-amp circuits, analog electronics, and precision power regulation.

✅ Key Features:
Output Voltage: -5V
Output Current: up to 1.5A
Input Voltage: -7V to -35V
Built-in short circuit protection
Thermal shutdown and safe-area compensation
Package: TO-220
High quality build for long-term reliability

⚙️ Applications:
Dual power supplies (±5V, ±12V)
Op-amp circuits
Analog and audio electronics
Embedded power systems
Microcontroller-based projects
Negative rail biasing

📐 Approx Dimensions (TO-220 Package):
Height (with leads): ~16 mm
Body Height: ~10 mm
Width: ~10.2 mm
Thickness: ~4.5 mm
Pin Pitch: 2.54 mm
Mounting Hole: ~3.3 mm

🧊 Note:
For stable operation, use appropriate input/output capacitors (e.g., 0.33µF input and 0.1µF output).
Use with a recommended TO-220 heatsink (25×15×15mm or similar) and thermal paste/pad to improve thermal dissipation under high load.
Product colour or marking may vary slightly depending on batch and availability. Functionality remains unchanged. (Refer to datasheet for exact specifications. Image is for reference only.)
