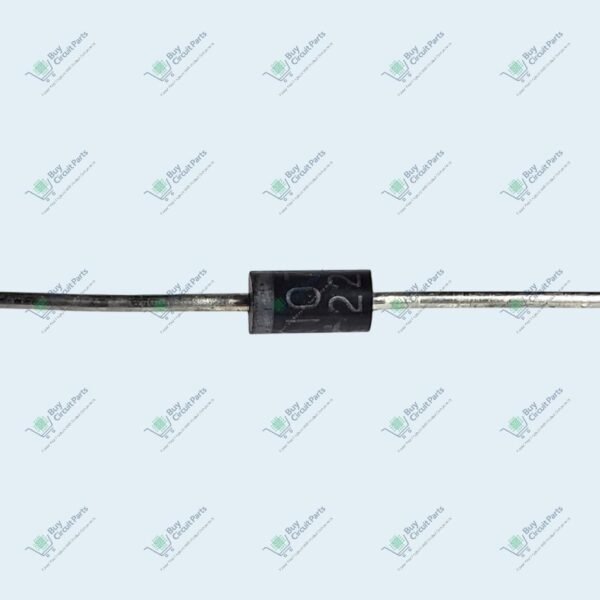

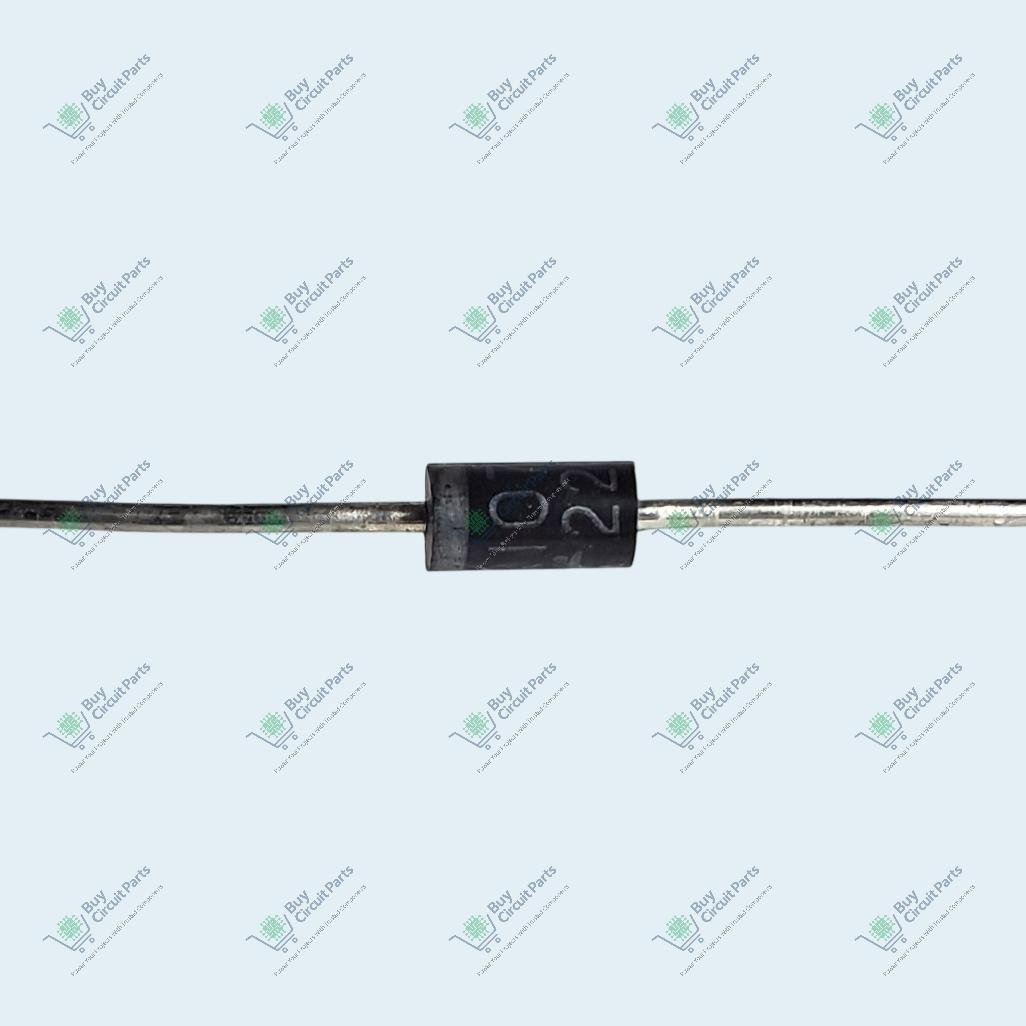

UF4007 Ultra Fast Recovery Diode 1000V 1A DO-41 – Best Quality

Description

UF4007 Ultra Fast Recovery Diode 1000V 1A DO-41 – Best Quality

📃 Full Description:
The UF4007 is a high-performance ultra-fast diode designed for use in high-speed switching power supplies, converters, and general-purpose rectification. Unlike standard 1N4007 diodes, the UF4007 offers significantly faster reverse recovery time (approx. 75ns), making it well-suited for circuits where switching speed and efficiency are critical.
Encased in the DO-41 axial package, it provides reliable and stable performance across a wide range of temperatures and voltages. This diode is often used in SMPS, solar inverters, LED drivers, and other high-frequency power electronics.

✅ Key Features:
Type: Ultra-Fast Recovery Rectifier Diode
Peak Reverse Voltage: 1000V
Average Forward Current: 1A
Peak Forward Surge Current: 30A
Reverse Recovery Time: ~75ns
Package: DO-41 Axial
Operating Temperature: -55°C to +150°C
High reliability and low switching loss

⚙️ Applications:
High-frequency switching power supplies (SMPS)
LED driver circuits
Inverter and solar charger circuits
Power adapters and battery chargers
Freewheeling and snubber diode in inductive loads
Fast rectification in DC-DC converters
📐 Dimensions (Approx):
Length: 5.2 mm × Diameter: 2.7 mm
Lead Length: 28 mm total (trimmable)

📝 Note:
Product image is for illustration; always refer to the official datasheet for accurate specifications.
