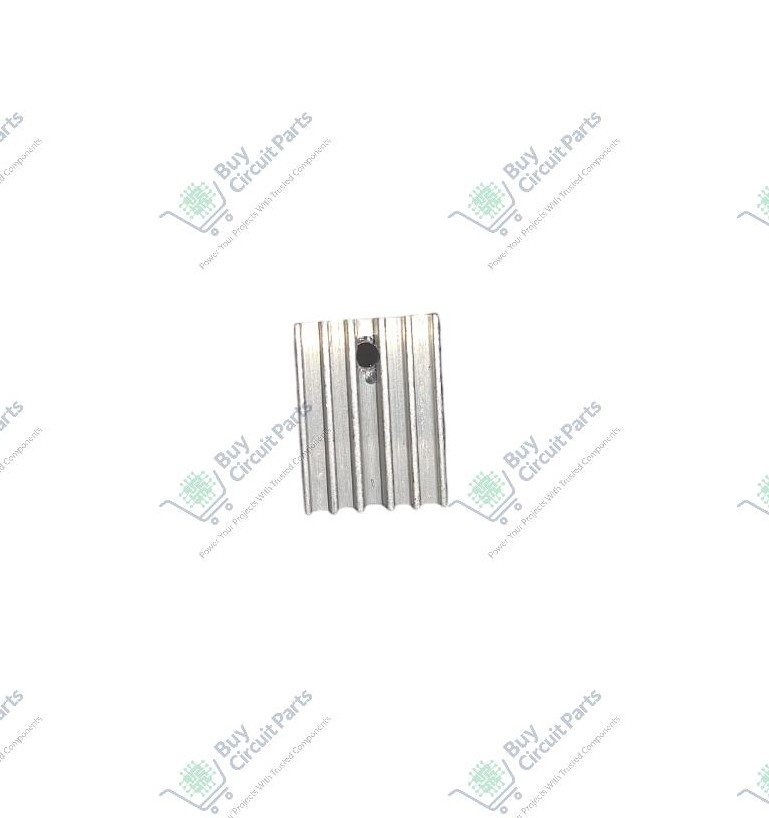

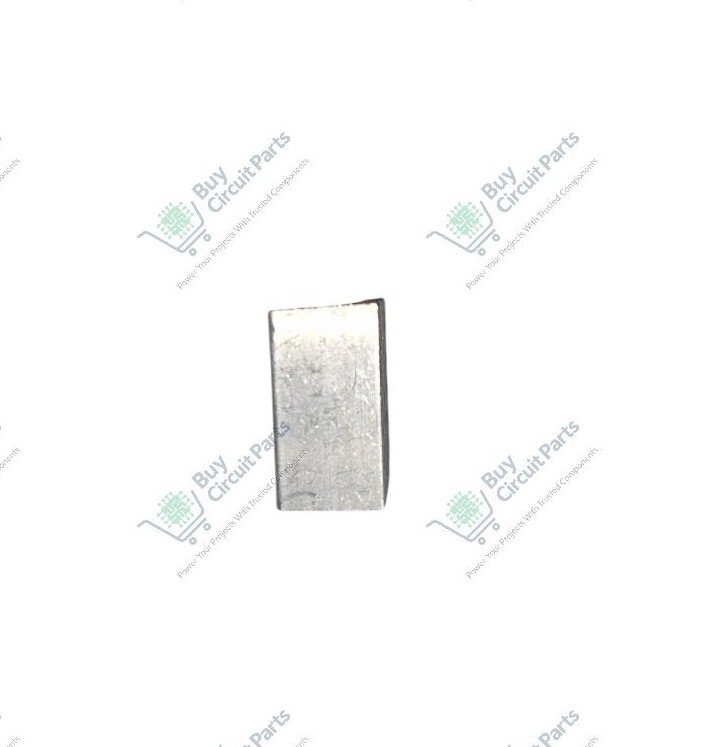

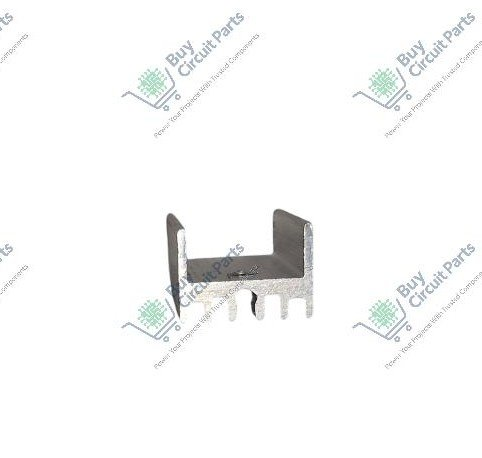

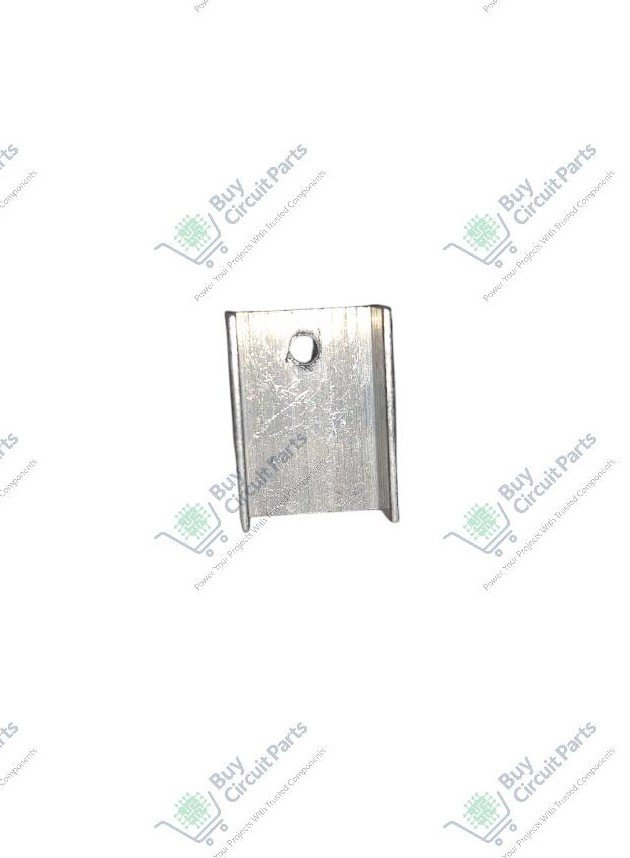

TO-220 Aluminum Cooling Heatsink

Description

Technical Overview of the TO-220 Aluminum Cooling Heatsink

The TO-220 Aluminum Cooling Heatsink is a vital thermal management component designed to dissipate heat from power semiconductors housed in the popular TO-220 package. High-power components like voltage regulators (LM7805), MOSFETs (IRFZ44N), and TRIACs generate significant heat during operation. Without proper cooling, these components can exceed their maximum junction temperature, leading to thermal shutdown or permanent failure. At BuyCircuitParts, we provide these high-grade aluminum heatsinks to ensure your power electronics remain stable, efficient, and “on track.“

Key Specifications and Physical Dimensions

To ensure a perfect fit for your enclosure and PCB, here are the technical details for the TO-220 Aluminum Cooling Heatsink:

• Material: High-Thermal Conductivity Aluminum.

• Compatibility: Specifically designed for TO-220 and similar packages.

• Mounting Type: Screw-hole mounting (Center hole).

• Fin Style: Multi-fin vertical/horizontal design for maximum surface area.

• Finish: Anodized (Black or Silver) for corrosion resistance.

• Thermal Resistance: Optimized for medium to high power dissipation.

• Dimensions: Standard compact footprint for PCB density.

The Importance of Aluminum in Thermal Management

The TO-220 Aluminum Cooling Heatsink is manufactured from aluminum because of the metal’s excellent thermal conductivity-to-weight ratio. Aluminum quickly absorbs heat from the metal tab of the TO-220 component and spreads it across its fins. These fins increase the total surface area in contact with the air, allowing convection to carry the heat away more effectively. At BuyCircuitParts, we source heatsinks with a precision-flat contact base, ensuring that when paired with thermal paste, the heat transfer is as efficient as possible.

Common Applications for the TO-220 Heatsink

The TO-220 Aluminum Cooling Heatsink is an essential part of various electronic power stages:

1. Voltage Regulators: Cooling LM7805, LM317, or LM7812 series regulators in linear power supplies.

2. Motor Drivers: Dissipating heat from MOSFETs and H-bridge transistors in robotics.

3. Audio Amplifiers: Used on power transistors to prevent thermal distortion during high-volume output.

4. Power Inverters: Keeping switching MOSFETs cool in DC-to-AC conversion circuits.

5. LED Drivers: Cooling high-current transistors used in dimming and power control.

Installation and Optimization Tips

For the TO-220 Aluminum Cooling Heatsink to perform at its peak, proper installation is key:

• Thermal Interface: Always use a thin layer of thermal paste (like our Heat Sink Thermal Paste 50g) between the component and the heatsink to fill microscopic air gaps.

• Insulation: If your circuit requires the metal tab of the TO-220 to be electrically isolated from the heatsink, use a mica or silicone insulator pad along with a plastic bushing for the screw.

• Airflow: Position the TO-220 Aluminum Cooling Heatsink so that the fins are aligned with the natural or forced airflow (fan) within your device’s enclosure.

• Secure Mounting: Ensure the mounting screw is tightened sufficiently to provide firm contact pressure, which is critical for low thermal resistance.

Why Choose BuyCircuitParts as Your Heatsink Seller?

We know that a poorly finished heatsink with a rough base can actually trap heat rather than release it. At BuyCircuitParts, we inspect our TO-220 Aluminum Cooling Heatsink stock for clean fin edges and flat mounting surfaces. We provide components that are ready for professional-grade assembly, whether you are building a custom power bank or repairing industrial machinery. With our focus on durability and fast shipping, we help you avoid the risks of component overheating and keep your project’s reliability “on track.“

Durability and Long-Term Protection

The anodized finish on our TO-220 Aluminum Cooling Heatsink doesn’t just look professional; it provides a layer of protection against oxidation and environmental wear. This is especially important for devices operating in humid or industrial environments where raw aluminum might degrade over time. By investing in a quality heatsink from BuyCircuitParts, you are extending the lifespan of your expensive semiconductors and reducing the need for future maintenance.

🧊 Note:
Product colour and markings may vary slightly based on manufacturer and batch. Functionality is guaranteed. (Refer to the product image for illustration only. For precise specifications, consult the datasheet.) For more information on thermal management theory, visit the Heat Sink Engineering Guide..
