1N4749A Zener Diode 24V 1W – Reliable Voltage Regulation

Description

Technical Overview of the 1N4749A Zener Diode 24V 1W

The 1N4749A Zener Diode 24V 1W is a high-voltage silicon semiconductor designed for precision regulation and transient suppression in 24V systems. In industrial electronics, 24V is the standard operating voltage for PLCs, sensors, and actuators. The 1N4749A acts as a reliable guardian, maintaining a steady 24V across its terminals and protecting sensitive downstream components from overvoltage spikes. With a substantial 1-watt power rating, this diode is significantly more robust than low-power signal Zeners, making it ideal for continuous shunt regulation. At BuyCircuitParts, we supply industrial-grade 1N4749A units to ensure your automation projects and power supplies stay stable and “on track.“

Key Specifications and Data Sheet Highlights

For precise integration into your industrial or power management designs, here are the technical parameters of the 1N4749A Zener Diode 24V 1W:

• Zener Voltage ($V_z$): 24V (Nominal).

• Power Dissipation ($P_d$): 1.0 Watt (1W).

• Tolerance: ±5% (Standard “A” suffix precision).

• Package Type: DO-41 (Axial-leaded glass or plastic).

• Zener Impedance ($Z_{zt}$): 25.0 Ohms (at 10.5mA).

• Reverse Leakage Current: 5.0µA at 18.2V.

• Operating Temperature Range: -65°C to +200°C.

The Role of 24V Zeners in Industrial Automation

The 1N4749A Zener Diode 24V 1W is an essential component for 24V DC control circuits. Many industrial power supplies can experience voltage “ringing” or surges when inductive loads like solenoids or motors are switched. By placing a 24V Zener in parallel with sensitive logic inputs, you create a “safety valve” that clamps any excess voltage precisely at 24V. The 1-watt power rating ensures the diode can handle these repetitive transients without degrading. At BuyCircuitParts, we ensure our 1N4749A stock features a clean avalanche breakdown characteristic for immediate response to voltage changes.

Common Applications for the 1N4749A Zener Diode

The 1N4749A Zener Diode 24V 1W is a versatile tool for various high-voltage electronic architectures:

1. Industrial PLC Protection: Guarding 24V digital inputs from inductive kickback in factory environments.

2. Voltage Regulation: Creating a stable 24V reference rail from a 36V or 48V unregulated DC source.

3. Solenoid Driver Protection: Clamping back-EMF spikes from 24V electromagnetic coils.

4. Battery Management Systems (BMS): Used in 24V battery packs to provide a fixed voltage reference for monitoring circuits.

5. LED String Protection: Ensuring that 24V LED arrays are not exposed to overvoltage from flickering drivers.

Pro-Tips for Circuit Integration

To ensure your 1N4749A Zener Diode 24V 1W provides long-term reliability, follow these professional guidelines:

• Resistor Selection: A Zener diode should always be paired with a series resistor ($R_s$) to limit current. Use the formula $R_s = (V_{source} – 24V) / I_{total}$ and double-check the resistor’s wattage rating.

• Correct Polarity: For voltage regulation/clamping, the diode must be Reverse Biased. The Cathode (the end with the black band) must be connected to the positive rail.

• Thermal Management: A 1W diode dissipates significant heat at 24V even with low current ($P = V \times I$). Do not mount it flush against the PCB; leaving a 5mm gap allows the leads to act as small heatsinks.

• Cascading: If you need a voltage reference higher than 24V, you can connect two 1N4749A diodes in series to create a stable 48V clamp.

Why Buy from BuyCircuitParts?

As a specialized seller, we know that in industrial applications, a failed diode can lead to expensive downtime. Sub-par 1N4749A Zener Diode 24V 1W diodes often have inconsistent breakdown voltages or thin leads that snap under vibration. At BuyCircuitParts, we source our diodes from reputable manufacturers with high quality-control standards. Our diodes feature thick, tinned leads and clear markings, ensuring a professional and durable assembly. With our fast shipping and technical expertise, we are here to provide the hardware that keeps your automation systems “on track.“

Durability and High-Temperature Stability

The 1N4749A Zener Diode 24V 1W is housed in a hermetically sealed DO-41 package that is designed to withstand temperatures up to 200°C. This thermal resilience is vital for electronics located inside hot industrial cabinets or near motor assemblies. By choosing your components from BuyCircuitParts, you are ensuring that your voltage protection is handled by professional-grade hardware designed for the most demanding environments.

Approx Dimensions:

Body Length: ~6.3 mm
Diameter: ~2.6 mm
Lead Length: ~25.4 mm

🧊 Note:

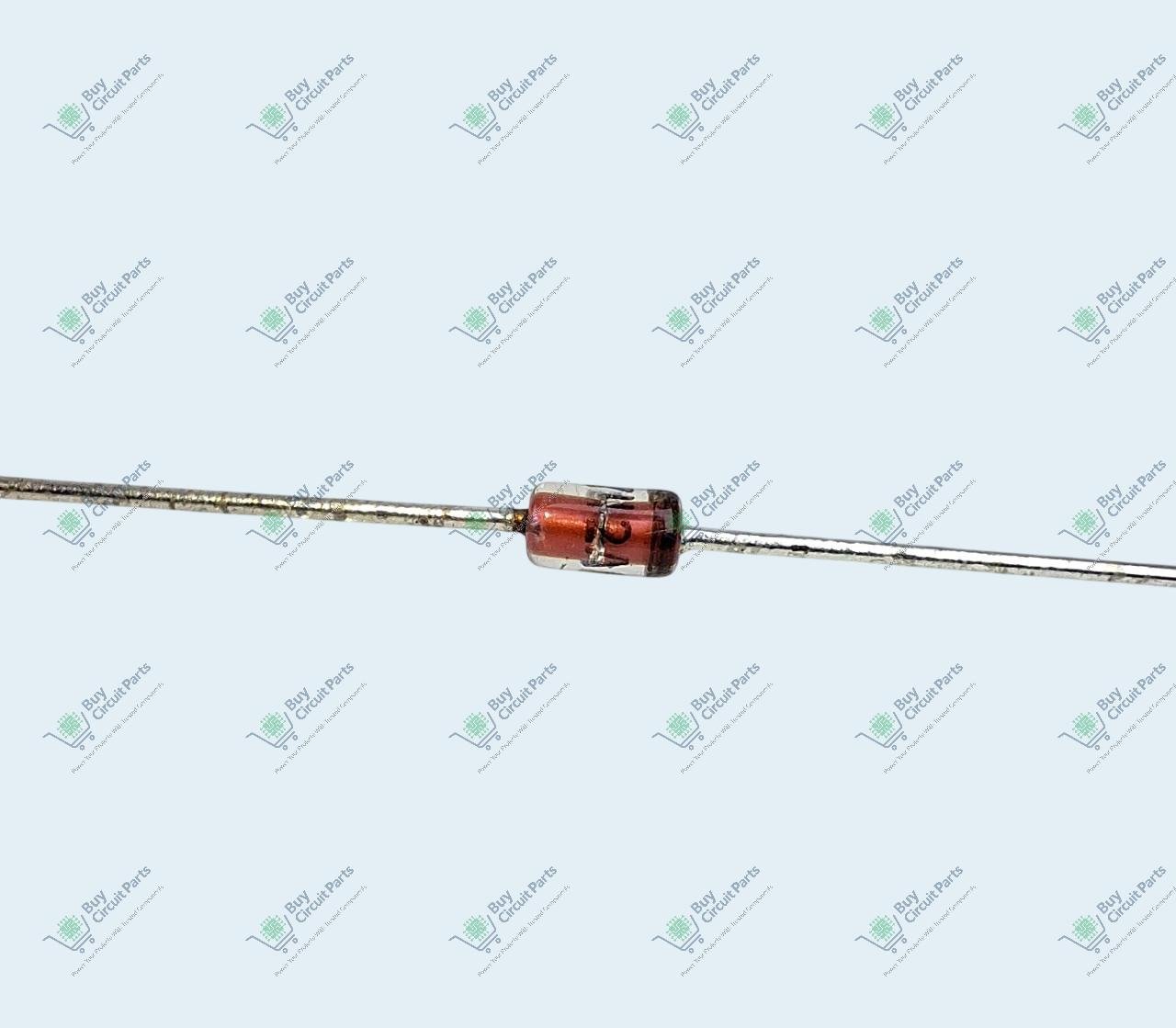

Product colour and markings may vary slightly based on manufacturer and batch. Functionality is guaranteed. (Refer to the product image for illustration only. For precise specifications, consult the datasheet.) For more details, check the Zener Diode Datasheet.
